The Magne-Trac product line provides one of the safest and most economical ways to meet your level measurement requirements.
In applications for extreme pressure, temperature, vibration, and highly corrosive or hazardous material, Magne-Trac gauge will perform where other fail. Features include lower installation costs, easy to read liquid level indication, and low maintenance.

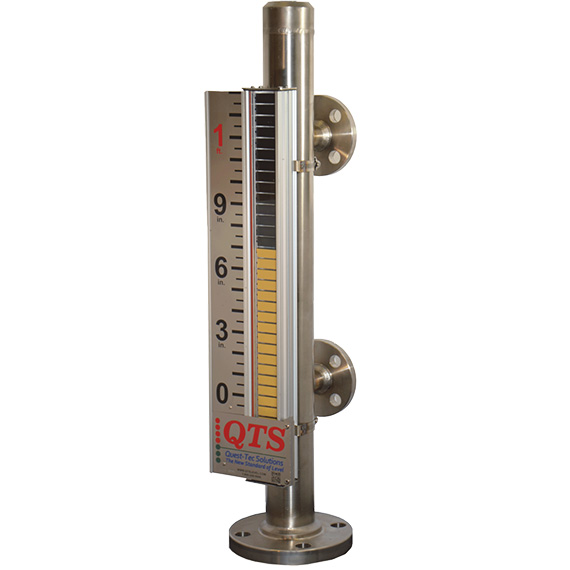

Questtec Magne-Trac Standard

Specs

Measuring Range
Standard single section (12 to 216in), Multi section (custom >216in)
Temperature Range
-320ºF to 800ºF
Pressure Range
Full Vacuum to 4500 PSIG
Minimum Specific Gravity
As low as 0.33
Chamber Materials
Standard Alloys (304/304L, 316/316L, Other 300 series stainless), Plastic/Composites (CPVC PVDF-KYNAR), Exotic Alloys (Titanium, Hastelloy-C276, Alloy20)
Chamber Diameters
2" Sch 40, 2 1/2 Sch 40/80, 3" Sch 40, 3" Sch10, 4" Sch 40, other sizes available
Oversized Chamber (Flashing, Boiling & Dirty Service)
3" Sch 40 with smaller OD floats
Process Connection
1/2” to 10+ DN20 to DN150
Process Connection Types
MNPT, FNPT, Weldolet®, Sockolet®, Sockweld Flange, Weldneck Flange, Lap Joint Flange; RTJ Flanged, Plain Pipe Stub

Features

  • Innovative Flag Design Maximizes Magnetic Field
  • Wide Flags for Enhanced Indicator View
  • Impact Resistant Polycarbonate Indicator Window
  • Corrosion Resistant Moving Parts
  • Wide Variety of Materials
  • Available to ASME 31.1/31.3 Standards
